Product characteristics
Axial plug-in - for blind assembly

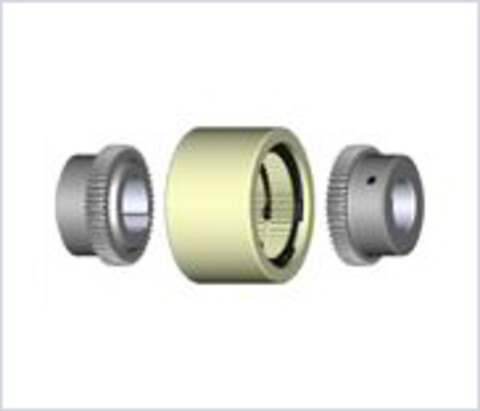

Double cardanic curved-tooth gear coupling
Compensation for shaft misalignment; axial - radial - angular
For all applications in the range of machinery and hydraulics
Maintenance-free due to material combination nylon / steel
Available with finish bore according to ISO fit H7
Feather keyway according to DIN6885 page 1 - JS9
Taper and inch bores for hydraulic pumps


Coupling description
BoWex® Curved-tooth gear couplings® are flexible shaft connections for a positive torque transmission and specifically suitable to compensate for axial, radial and angular shaft misalignment.
According to the well-known effect of curved-tooth gear couplings any edge pressure in the spline in case of angular and radial displacements is avoided so that BoWex couplings are almost free from wear.
